• 8018A
Description

Item no. 8018A
Desc.:
Material:S.S. 316
Spec.:3mm and 4mm

  • Product Description
  • Product Specification

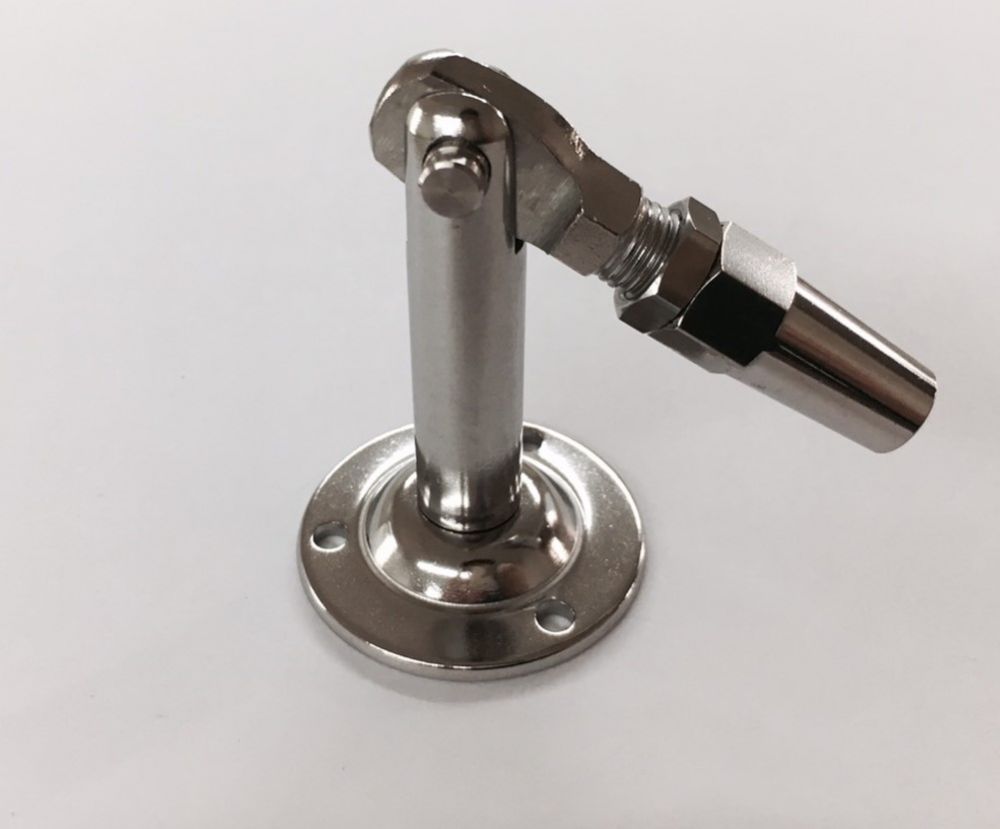

Wire rope rigging fitting
This stainless steel terminal is suitable for a wide variety of applications, including
balustrades, signs, shade sails and trellises. The terminal is easy to install with common
hand tools and is easily adjustable to suit seasonal changes. This stainless steel terminal
features three-section alloy steel serrated jaws for a secure hold on wire rope.

* Stainless steel terminal for a wide variety of applications
* Three-section alloy steel serrated jaws to hold wire securely
* No swaging required
* Easy to install with common hand tools
* Adjustable to suit seasonal changes
* Ideal for balustrades, signs, shade sails, and trellises
* The body can be rotated 360 degrees
* Taiwan manufacturing, quality wire rope hardware

1. Available for wire Ø 3 mm.

A B C D E KW1 KW2 KW3 KW4 KW5 BL
5mm 41mm 2.5mm 42mm 3mm 12mm 12mm 10mm M6xP1.0x45L M6xP1.0x45L(LH) 500kgs
5mm 41mm 2.5mm 42mm 4mm 14mm 14mm 10mm M6xP1.0x45L M6xP1.0x45L(LH) 1000kgs
