Description
Inquiry Prev
  • Product Specification

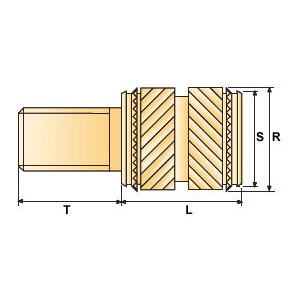

Dimensions : mm

THREAD SIZES

L

 R S Stud Lengths(T)
ISO Metric mm mm mm mm
M2 4.0 3.5 3.1 5 mm - 25 mm
M2.5 5.7 4.4 3.9 5 mm - 25 mm
M3 5.7 4.4 3.9 5 mm - 25 mm
M3.5 7.1 5.2 4.7 5 mm - 25 mm
M4 8.1 6.1 5.5 5 mm - 25 mm
M5 9.5 6.8 6.3 5 mm - 25 mm
M6 12.7 8.5 7.9 5 mm - 25 mm
M8 12.7 10.0 9.5 5 mm - 25 mm
M10 12.7 12.3 11.8 5 mm - 25 mm
