Description
Inquiry Next
  • Product Specification

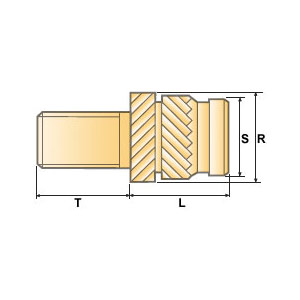

Dimensions : mm

Thread Sizes

L

 H D R S Stud Lengths(T)
ISO Metric mm mm mm mm mm mm
M2 4.0 0.53 4.8 3.6 3.1 5 mm - 25 mm
M2.5 5.74 0.61 5.5 4.6 3.9 5 mm - 25 mm
M3 5.74 0.61 5.5 4.6 3.9 5 mm - 25 mm
M3.5 7.1 0.76 6.4 5.4 4.7 5 mm - 25 mm
M4 8.1 0.91 7.1 6.3 5.5 5 mm - 25 mm
M5 9.52 1.09 7.9 7.1 6.3 5 mm - 25 mm
M6 12.7 1.35 9.5 8.7 7.9 5 mm - 25 mm
M8 12.7 1.35 11.1 10.2 9.5 5 mm - 25 mm
M10 12.7 1.60 14.0 12.6 11.8 5 mm - 25 mm
