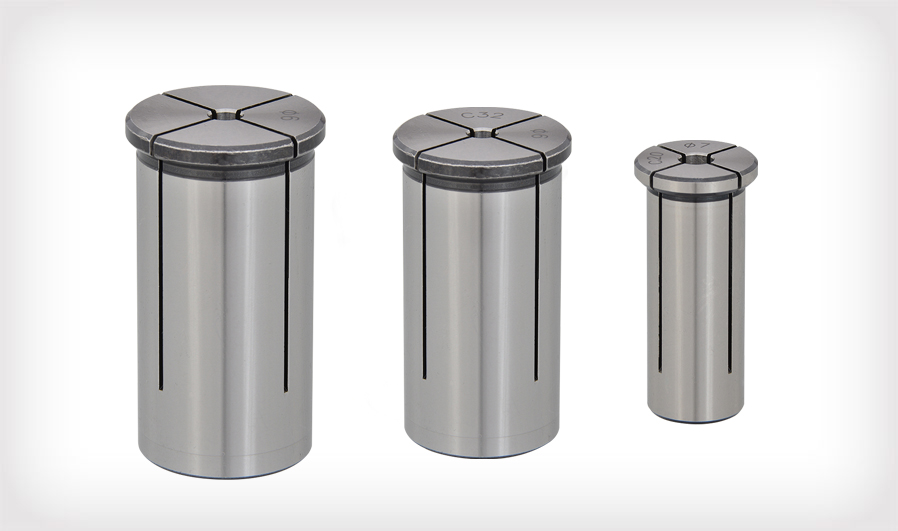

• C20, C32
Description
Inquiry

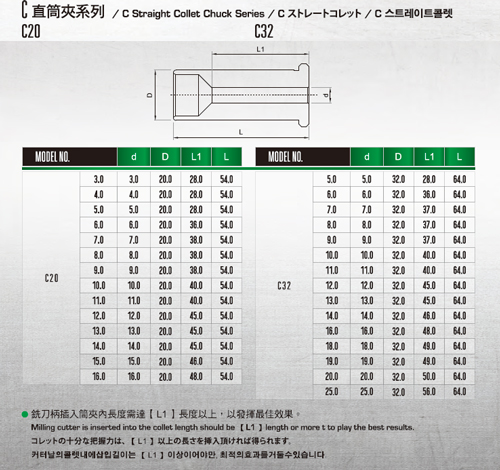

  • Product Specification

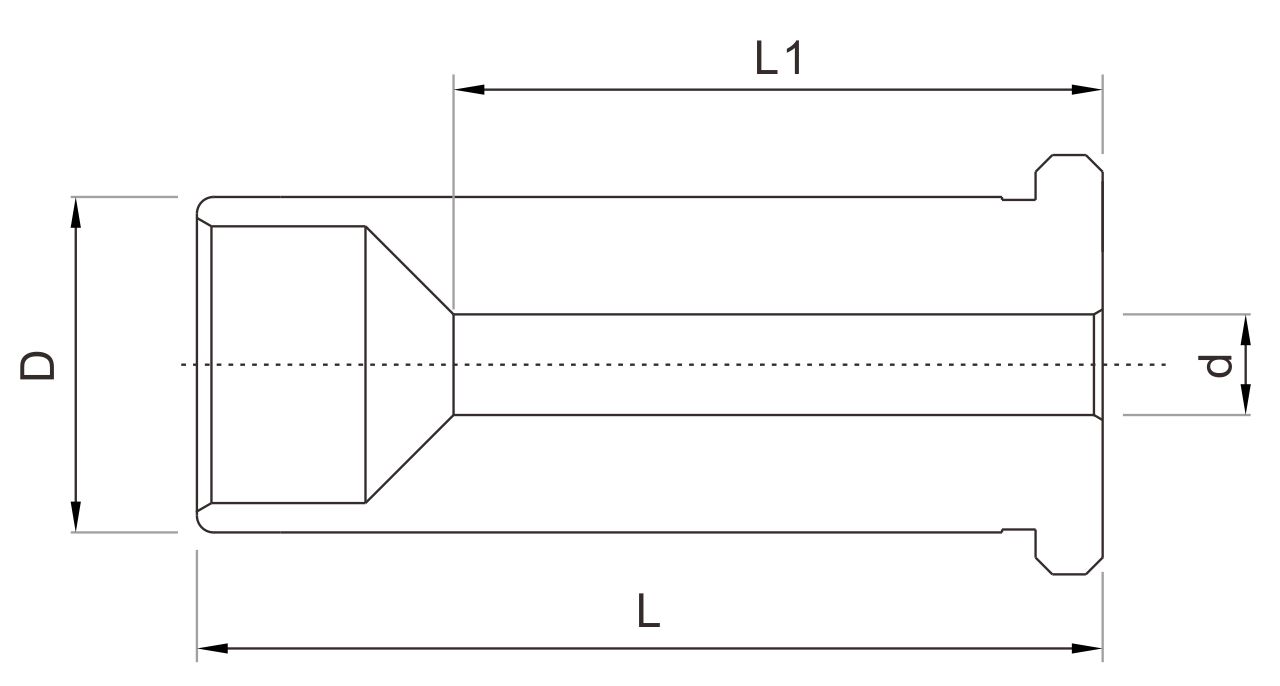

Model No. d D I L
C20 3.0 3.0 20.0 28.0 54.0
4.0 4.0 20.0 28.0 54.0
5.0 5.0 20.0 28.0 54.0
6.0 6.0 20.0 36.0 54.0
7.0 7.0 20.0 38.0 54.0
8.0 8.0 20.0 38.0 54.0
9.0 9.0 20.0 38.0 54.0
10.0 10.0 20.0 40.0 54.0
11.0 11.0 20.0 40.0 54.0
12.0 12.0 20.0 45.0 54.0
13.0 13.0 20.0 45.0 54.0
14.0 14.0 20.0 45.0 54.0
15.0 15.0 20.0 46.0 54.0
16.0 16.0 20.0 48.0 54.0
C32 5.0 5.0 32.0 28.0 64.0
6.0 6.0 32.0 36.0 64.0
7.0 7.0 32.0 37.0 64.0
8.0 8.0 32.0 37.0 64.0
9.0 9.0 32.0 37.0 64.0
10.0 10.0 32.0 40.0 64.0
11.0 11.0 32.0 40.0 64.0
12.0 12.0 32.0 45.0 64.0
13.0 13.0 32.0 45.0 64.0
14.0 14.0 32.0 46.0 64.0
16.0 16.0 32.0 48.0 64.0
18.0 18.0 32.0 49.0 64.0
19.0 19.0 32.0 49.0 64.0
20.0 20.0 32.0 50.0 64.0
25.0 25.0 32.0 56.0 64.0

● The length of the milling shank inserted into the collet should be longer than the length of "L1" for best results.
